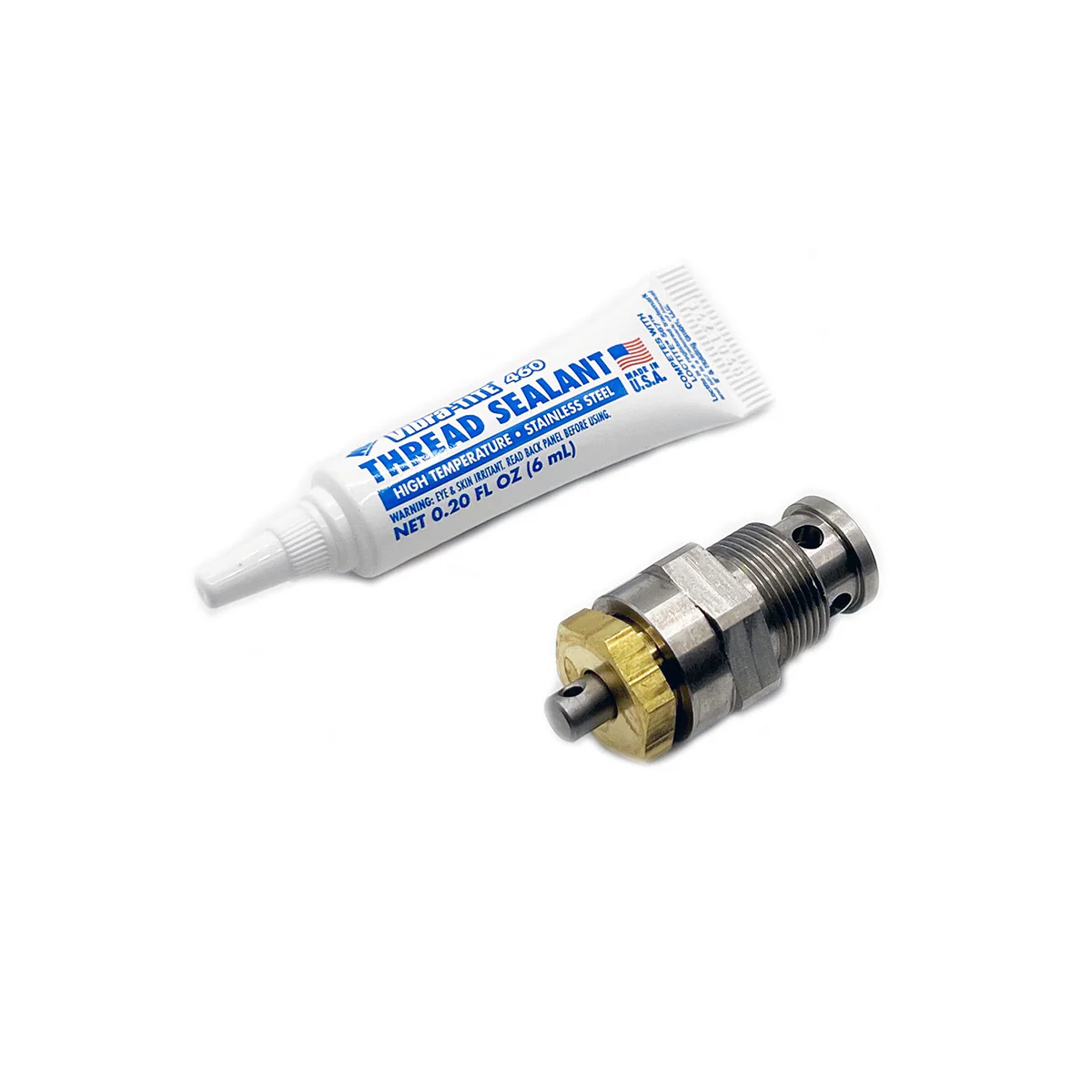

Kit - Drain Valve

The Bedford 20-2324 is a direct-fit replacement for the Graco Spray Prime/Drain Valve Kit, an essential maintenance component for airless spray systems requiring periodic fluid evacuation and system priming.

Spray equipment technicians and rental equipment maintenance staff rely on this kit to service the drain function across multiple Graco pump configurations. The kit addresses both routine system maintenance and mid-shift fluid changes that professionals execute to minimize downtime on active job sites.

Common reasons for replacement:

• Valve seals degrade from repeated exposure to solvents, primers, and paint thinners, causing fluid leakage around the drain port during storage or between jobs.
• Internal spring mechanisms lose tension over time, preventing positive valve closure and resulting in unwanted fluid weeping from the drain assembly.
• O-ring and packing wear allow pressurized fluid to escape around the valve stem during pump operation, indicating the kit components require replacement.
• Debris accumulation or dried coating residue in the valve seat restricts proper opening and closing action, necessitating a complete kit refresh rather than partial component repair.

Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.

Replacement for: Graco 235014, Graco 820904.
