Kit - Mark IV, TexSpray Mark IV

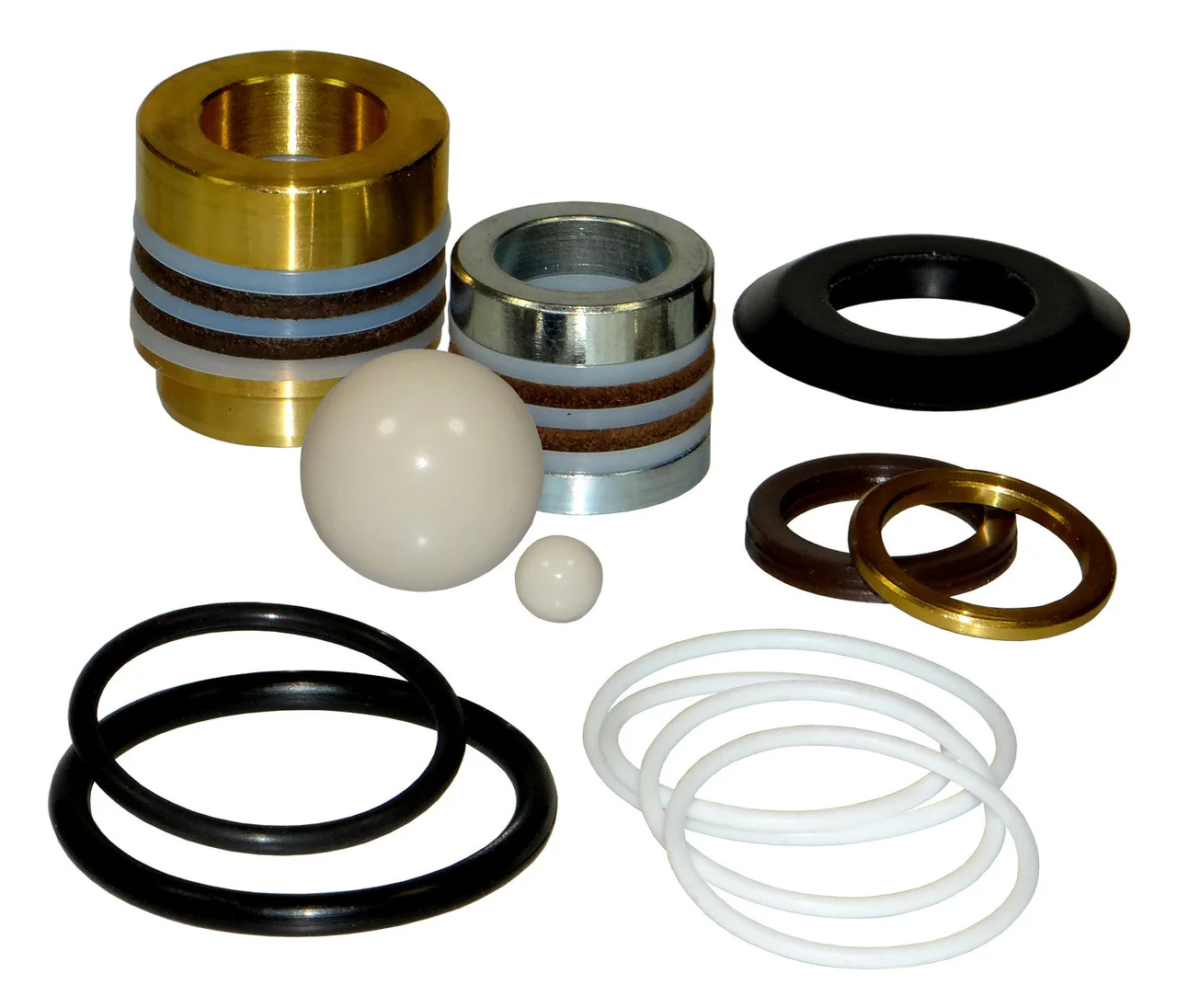

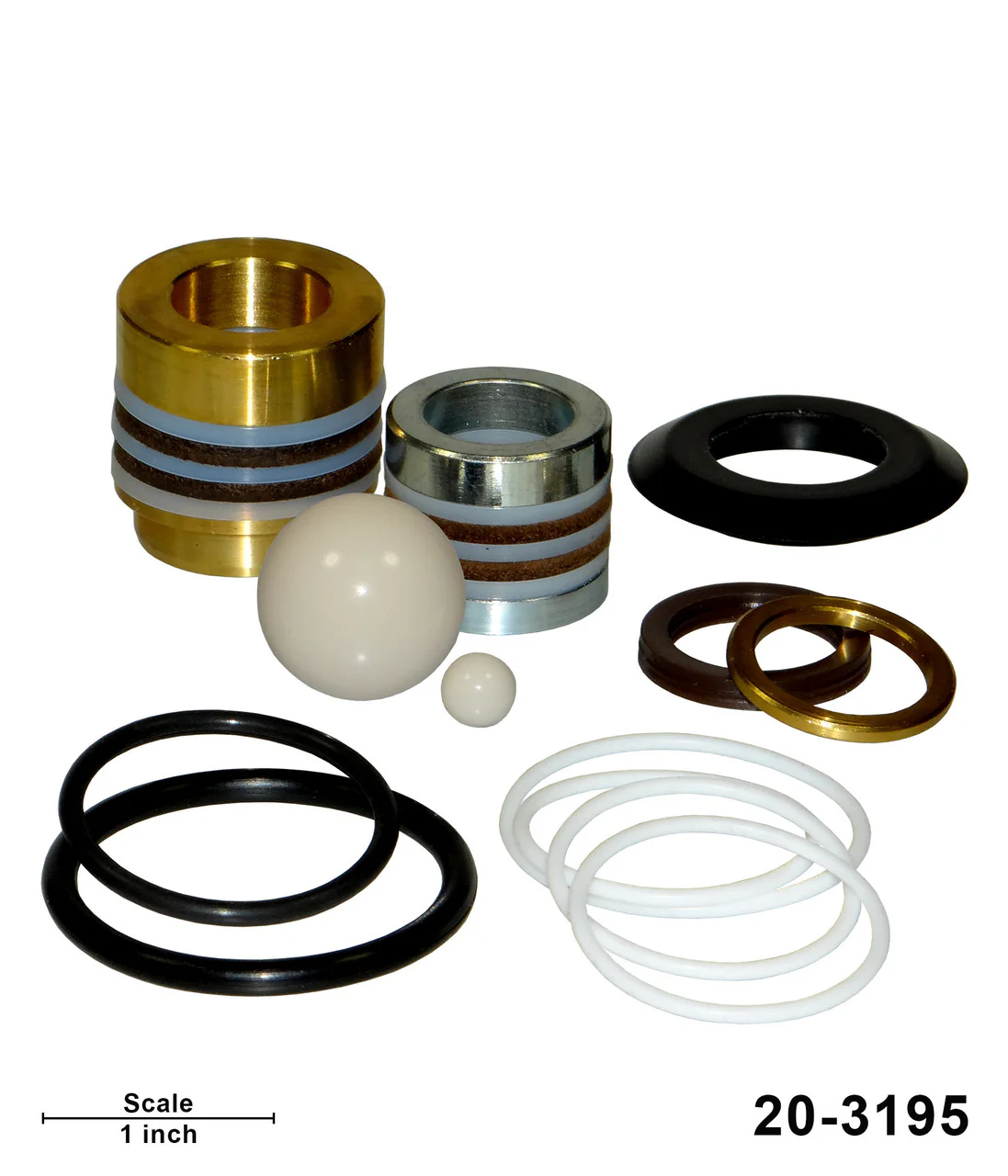

The Bedford 20-3195 is a direct-fit replacement pump repair kit for the Mark IV and TexSpray Mark IV airless spray systems, designed to restore performance when internal wear or seal degradation compromises pumping efficiency.

This comprehensive rebuild kit addresses the wear points that accumulate during heavy-duty coating application, enabling spray equipment technicians and pump rebuild specialists to restore equipment to OEM performance standards without replacing the entire pump assembly. Professional painting contractors benefit from faster equipment turnaround when this kit is stocked for routine maintenance cycles.

Common reasons for replacement:

• Internal packings and seals harden or wear after extended use, causing pressure loss and inconsistent spray patterns
• Check balls or valve components fail, reducing pump efficiency or preventing proper fluid cycling
• O-rings and gasket seals deteriorate from exposure to coating solvents or thermal cycling
• Pressure relief valve components require replacement when spray output becomes erratic or unstable

Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.

Replacement for: Graco 24V063, Graco 24V-063.
