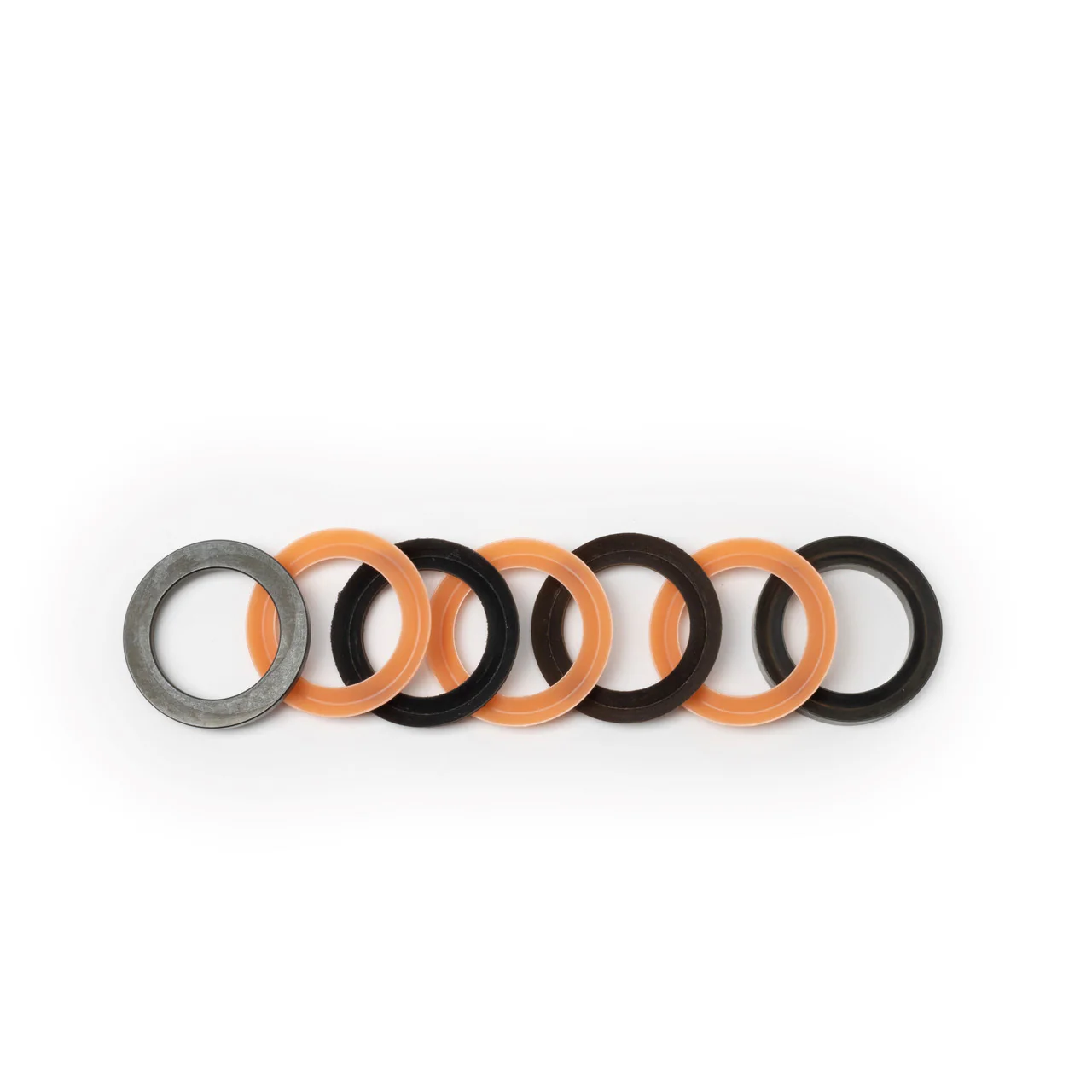

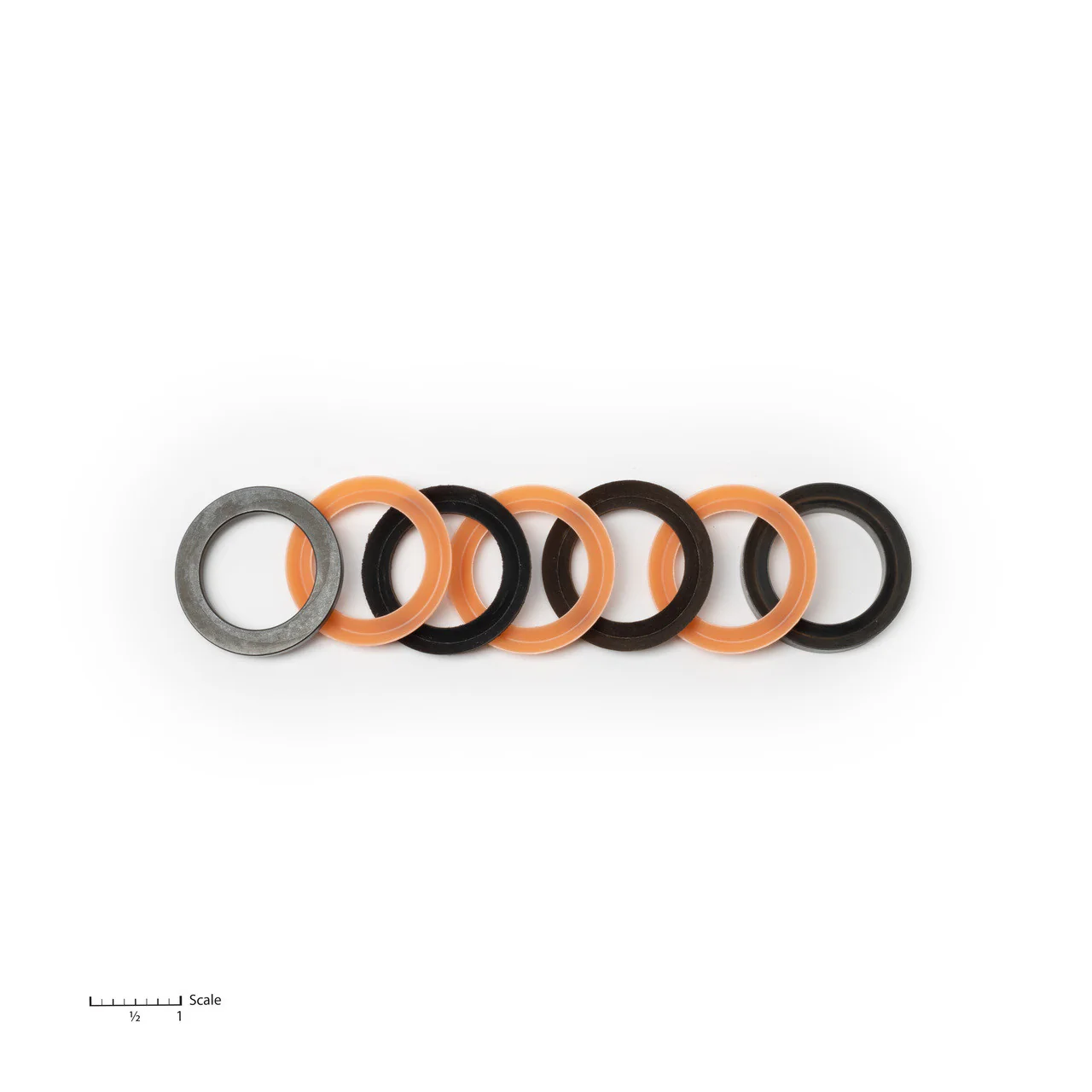

The Bedford 20-3420 is a direct-fit replacement for the piston packing set on Graco Xtreme 220 L/PE airless spray equipment. This sealed packing assembly maintains pressure integrity within the pump's fluid chamber during high-volume coating application, ensuring consistent spray performance across commercial and industrial job sites.
Pump rebuild specialists and spray equipment service technicians rely on piston packing sets to restore worn or degraded sealing surfaces that develop during extended operation. Proper packing function prevents fluid bypass around the piston rod and internal leakage that compromises spray consistency and system pressure stability.
Common reasons for replacement:
- Visible fluid weeping or dripping from pump housing during spray cycles, indicating packing wear or compression loss
- Pressure fluctuations or inability to reach full PSI capacity, caused by internal fluid bypass around worn seals
- Reduced spray pattern control or inconsistent atomization when packing degradation allows pressure loss within the pump chamber
- Scheduled maintenance intervals on high-use equipment, where packing sets are replaced as part of preventive pump reconditioning
Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.
Replacement for: Graco 25D-143, Graco 25D143.
BEDFORD® and BEDFORD PRECISION PARTS™ are proprietary marks of Bedford Precision Parts, LLC (“Bedford”). All other listed marks are proprietary to their respective owners and are not affiliated with Bedford.
