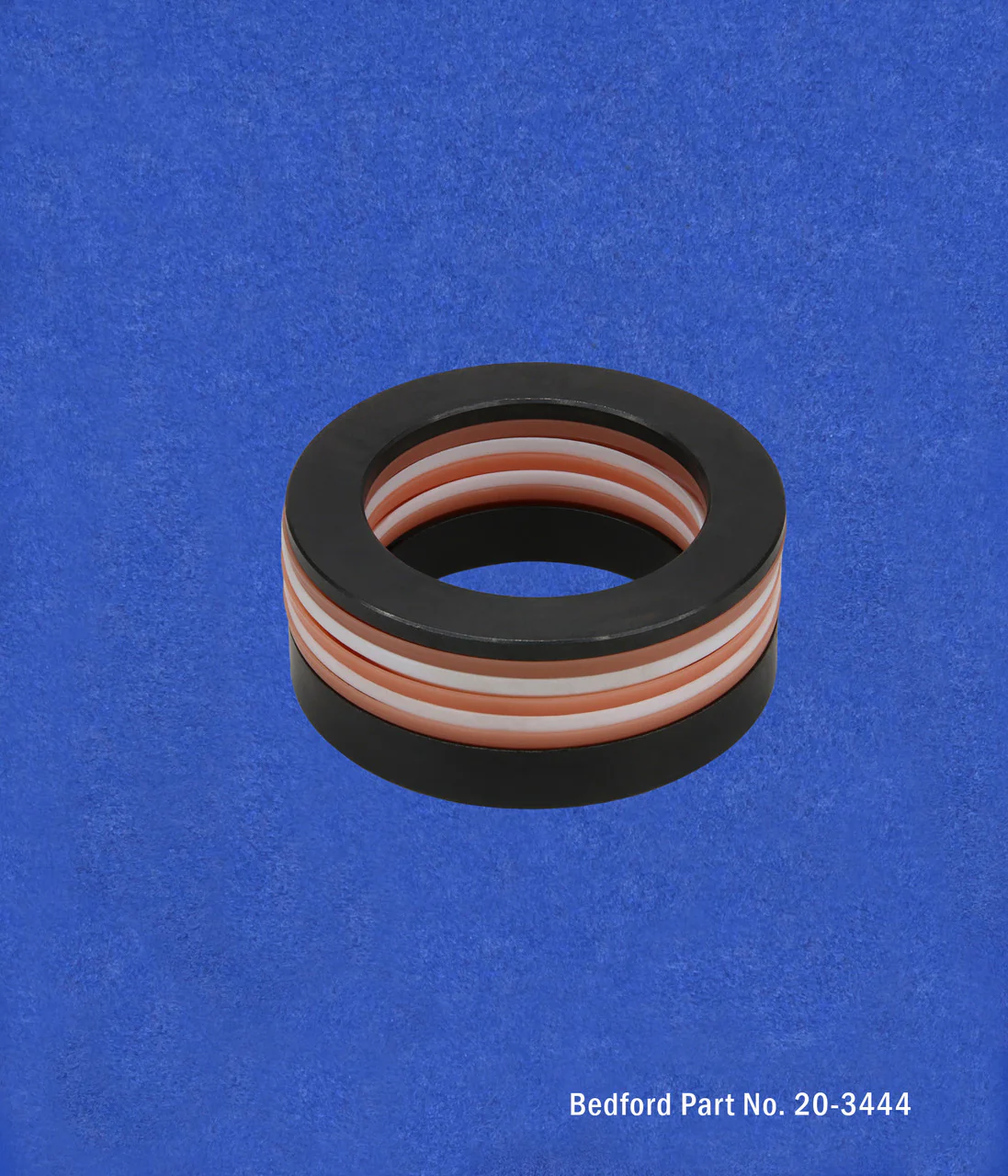

The Bedford 20-3444 is a direct-fit replacement piston package set designed for the Xtreme 290cc TFE/PE airless sprayer, engineered to restore full pump displacement and spray performance on this high-volume application platform.
Spray equipment technicians and professional contractors rely on piston package sets to address wear patterns that develop across the reciprocating sealing surfaces inside the pump cylinder. As elastomer components compress and abrade during thousands of spray cycles, loss of seal integrity triggers pressure drop, flow inconsistency, and uneven spray pattern distribution—symptoms that demand a complete component replacement rather than partial repair.
Common reasons for replacement:
- Elastomer seals compressed or worn thin, causing pressure loss and reduced flow rate
- Surface scoring or pitting on piston rod visible during pump inspection
- Fluid leakage past piston seals into the crankcase during operation
- Spray pattern degradation or inability to reach rated PSI on high-viscosity coatings
Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.
Replacement for: Graco 25D193, Graco 25D-193.
BEDFORD® and BEDFORD PRECISION PARTS™ are proprietary marks of Bedford Precision Parts, LLC (“Bedford”). All other listed marks are proprietary to their respective owners and are not affiliated with Bedford.
