The Story

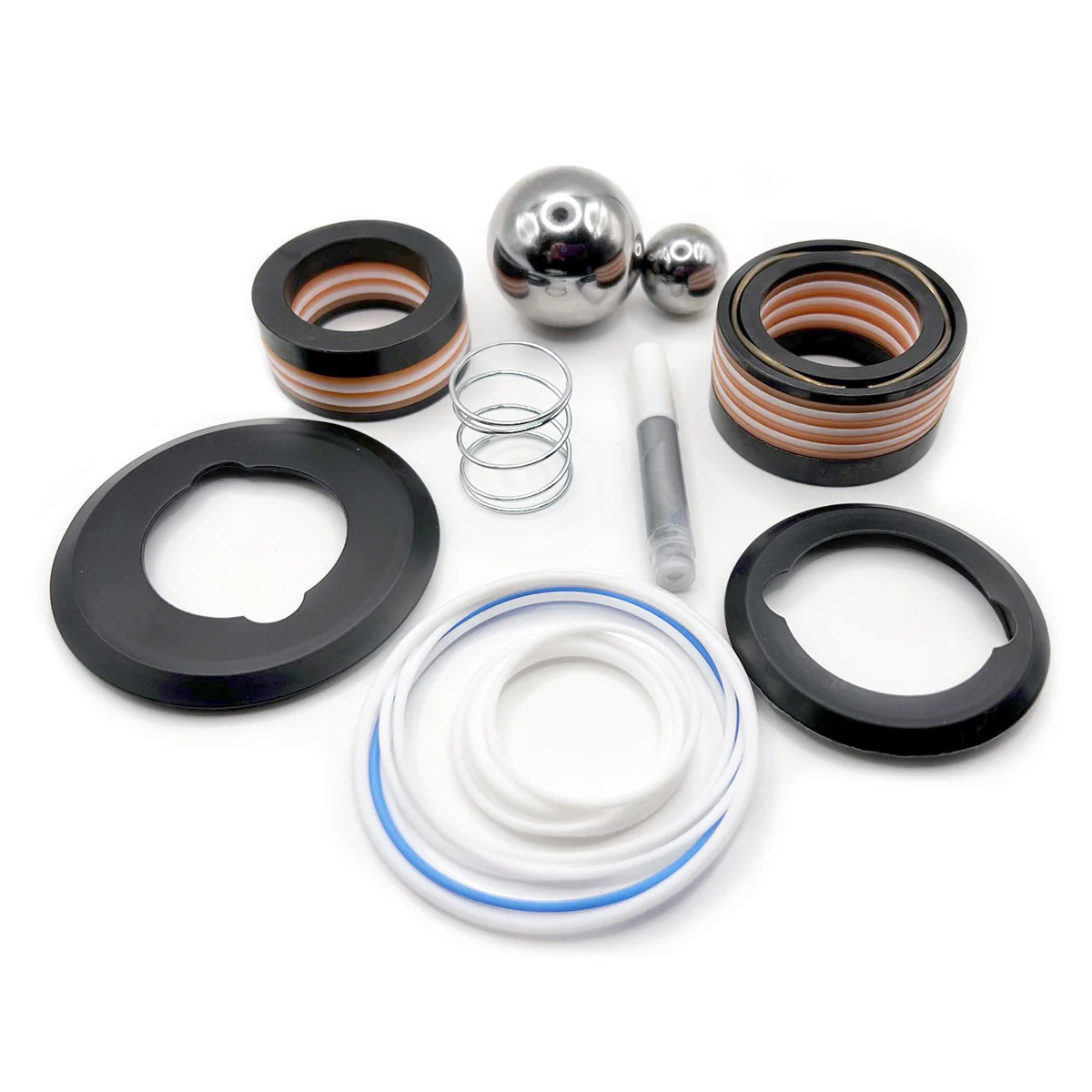

The Bedford 20-3424 is a direct-fit replacement pump repair kit for the Xtreme 220cc sprayer with TFE/PE configuration, engineered for professional contractors and pump rebuild specialists who service high-output airless spray equipment in the field or shop.
This comprehensive kit supplies the packings, seals, O-rings, and internal components required to restore worn or damaged pump assemblies to original performance specifications. Spray equipment technicians rely on these kits to minimize downtime during preventive maintenance cycles or emergency pump rebuilds on actively used equipment.
Common reasons for replacement:
- Packing degradation or leakage around the pump rod and plunger assembly after extended run hours
- Worn or hardened elastomer seals that no longer maintain pressure integrity during high-volume spray cycles
- Loss of pump priming or pressure buildup due to compromised internal check ball seats or valve seals
- Fluid seepage past rod packings during idle storage or between job sites
Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.
Replacement for: Graco 25D-260, Graco 25D260.
BEDFORD® and BEDFORD PRECISION PARTS™ are proprietary marks of Bedford Precision Parts, LLC (“Bedford”). All other listed marks are proprietary to their respective owners and are not affiliated with Bedford.
Description
The Bedford 20-3424 is a direct-fit replacement pump repair kit for the Xtreme 220cc sprayer with TFE/PE configuration, engineered for professional contractors and pump rebuild specialists who service high-output airless spray equipment in the field or shop.
This comprehensive kit supplies the packings, seals, O-rings, and internal components required to restore worn or damaged pump assemblies to original performance specifications. Spray equipment technicians rely on these kits to minimize downtime during preventive maintenance cycles or emergency pump rebuilds on actively used equipment.
Common reasons for replacement:
- Packing degradation or leakage around the pump rod and plunger assembly after extended run hours
- Worn or hardened elastomer seals that no longer maintain pressure integrity during high-volume spray cycles
- Loss of pump priming or pressure buildup due to compromised internal check ball seats or valve seals
- Fluid seepage past rod packings during idle storage or between job sites
Manufactured to OEM-equivalent dimensions for proper fit and performance. Compatible Graco equipment models are listed in the Compatible Equipment section below, where available.
Replacement for: Graco 25D-260, Graco 25D260.
BEDFORD® and BEDFORD PRECISION PARTS™ are proprietary marks of Bedford Precision Parts, LLC (“Bedford”). All other listed marks are proprietary to their respective owners and are not affiliated with Bedford.
